A Robust Data Foundation for Industrial Metaverse Using MQTT and Unified Namespace
The Industrial Metaverse is quickly making an impact in the Industrial Internet of Things (IIoT) space, with the potential to reshape manufacturing, supply chain management, and industrial operations. It brings together metaverse technology to improve and transform industrial processes, pushing digital transformation forward. Built on technologies like digital twins and Industry 4.0, the Industrial Metaverse represents a new level of industrial digitalization.
However, the success of this initiative hinges on one critical factor: data. For IIoT engineers, solution architects, digital transformation specialists, and digital twin leads, establishing a robust data foundation is critical. This foundation, built on open protocols like MQTT and frameworks like Unified Namespace (UNS), creates a winning combination that future-proofs industrial systems. This robust data foundation enables:
Predictive Maintenance: A robust data foundation enables real-time analysis of equipment data, allowing the Industrial Metaverse to predict and prevent potential failures before they occur.
Process Optimization: With a solid data infrastructure, the Industrial Metaverse can create accurate virtual simulations, identifying inefficiencies and suggesting improvements based on real-world data.
Enhanced Training: A comprehensive data foundation powers immersive, data-driven training environments in the Industrial Metaverse, preparing workers for complex tasks and scenarios.
Supply Chain Visibility: Robust data integration enables real-time visibility across the entire supply chain within the Industrial Metaverse, facilitating better decision-making and risk management.
Energy Efficiency: A strong data foundation allows the Industrial Metaverse to collect and analyze detailed energy consumption data, driving significant improvements in sustainability efforts.
Industrial Metaverse and the Importance of Data
The Industrial Metaverse represents a convergence of physical and digital worlds, where real-time data from industrial processes, machines, and systems are seamlessly integrated into immersive, interactive virtual environments. This concept extends beyond simple visualization, enabling advanced simulations, predictive maintenance, and optimized decision-making.
At the heart of the Industrial Metaverse lies data. Without a continuous, real-time flow of accurate and contextual data from the physical world, the digital representations in the metaverse would be nothing more than static 3D models.

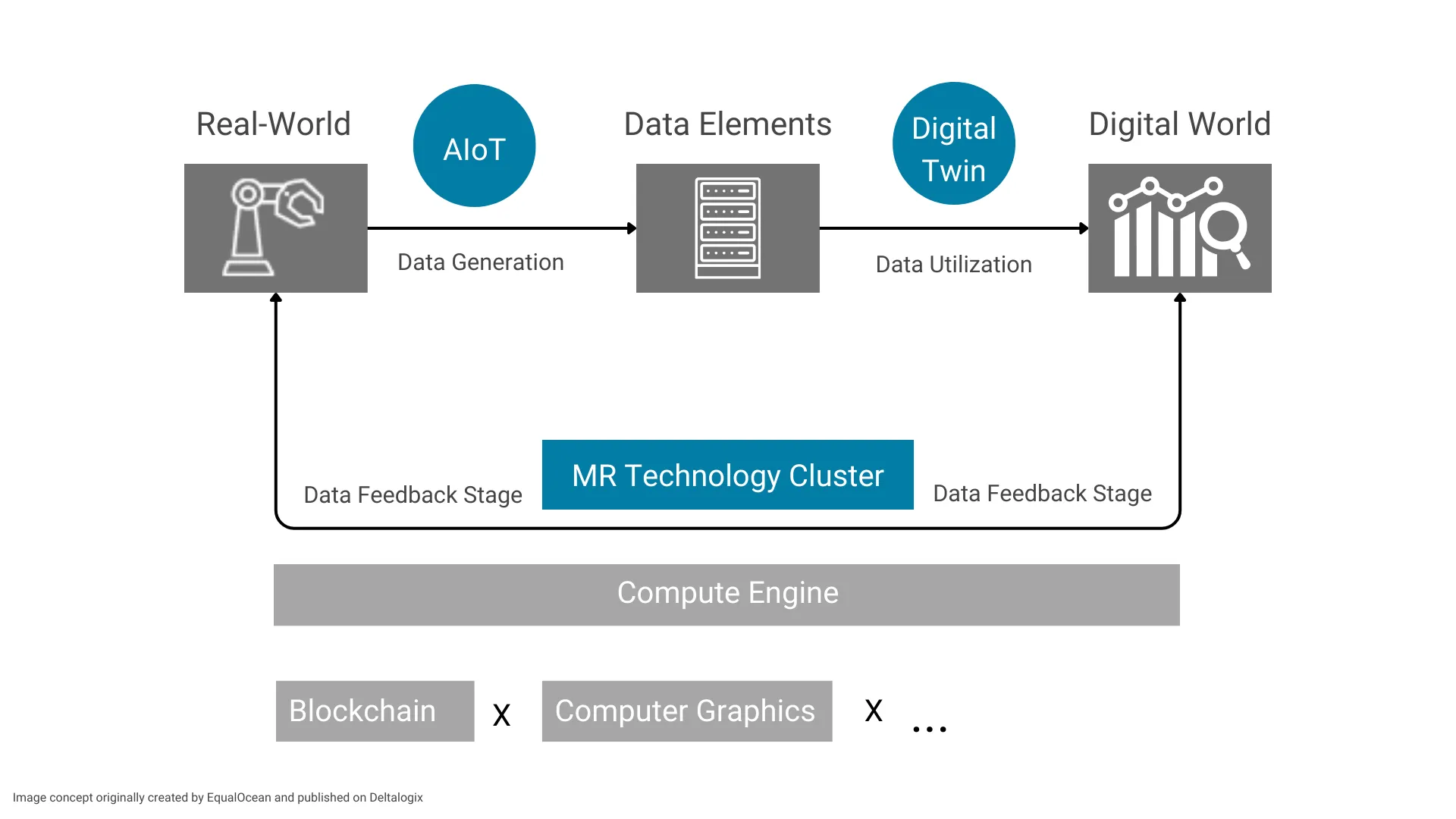

The technologies involved in the industrial metaverse
The Industrial Metaverse requires:
Real-time data streaming: To reflect the current state of industrial processes
Historical data access: For trend analysis and predictive modeling
Contextual information: To understand the relationships between different data points
Scalability: To handle massive amounts of data from countless sensors and devices
Interoperability: To integrate data from diverse systems and protocols
Reliability: To ensure that the data flowing can be managed efficiently
The Importance of Open Standards and MQTT as a Unifying Protocol
In the industrial landscape, a multitude of protocols and systems coexist, ranging from legacy equipment to modern IoT devices. This diversity often creates data silos, hindering the seamless flow of information necessary for the Industrial Metaverse. MQTT, with its lightweight nature and publish-subscribe model, emerges as a powerful unifying protocol, capable of bridging these disparate systems.
MQTT as a Data Convergence Point
MQTT brokers can act as central hubs, collecting data from various sources and protocols, and presenting it in a unified format. This capability is crucial for creating a cohesive data foundation for the Industrial Metaverse. Here's how MQTT facilitates this convergence:
Legacy System Integration: Older industrial equipment using protocols like Modbus or Profibus can be connected to MQTT brokers through protocol gateways. These gateways translate the proprietary or older protocols into MQTT, allowing legacy systems to contribute their data to the modern IIoT ecosystem.
OPC UA Complementation: While OPC UA excels in providing rich semantic models, MQTT can complement it by handling efficient, real-time data transmission. OPC UA servers can publish data to MQTT brokers, combining OPC UA's detailed metadata with MQTT's lightweight transmission.
Protobuf Serialization: For systems using Protocol Buffers (Protobuf) for data serialization, MQTT can serve as the transport layer. This combination leverages Protobuf's efficient data representation with MQTT's reliable messaging system.
Integration with Enterprise Systems: MQTT can interface with enterprise-level systems and protocols. For instance, MQTT brokers can be configured to publish data to Apache Kafka topics, bridging the gap between edge devices and large-scale data streaming platforms.
Cloud Connectivity: Many cloud providers offer MQTT support, allowing direct connection of industrial devices to cloud services. This enables seamless integration of on-premises systems with cloud-based analytics and storage solutions.
By leveraging MQTT as a unifying protocol, organizations can create a standardized data pipeline that aggregates information from diverse sources. This unified data stream forms the backbone of the Industrial Metaverse, enabling:
Real-time visibility across heterogeneous systems
Consistent data formatting for easier processing and analysis
Scalable architecture that can accommodate both legacy and future systems
Reduced complexity in data integration efforts
The ability of MQTT to act as a common language for various industrial protocols and systems ensures that all relevant data, regardless of its origin, can be incorporated into the Industrial Metaverse. This comprehensive data integration is key to creating accurate, real-time digital representations of physical industrial environments, paving the way for advanced simulations, predictive maintenance, and optimized decision-making in the Industrial Metaverse.
Unified Namespace: The Architecture for Future-Proofing IIoT Systems
A Unified Namespace (UNS) is more than just a data organization strategy; it's a fundamental architectural approach that enables seamless data flow across an entire industrial ecosystem.
For the Industrial Metaverse, UNS offers several critical advantages:
Data Contextualization: UNS provides a hierarchical structure that mirrors the physical and logical organization of industrial processes, making it easier to understand data in context.
Interoperability: By standardizing naming conventions and data structures, UNS facilitates communication between different systems and applications.
Scalability: As new devices or systems are added, they can be easily integrated into the existing namespace without disrupting the overall architecture.
Real-time Access: UNS, when implemented correctly, allows for real-time access to data across the entire industrial landscape, crucial for the dynamic nature of the Industrial Metaverse.
Simplified Data Governance: With a clear, organized structure, implementing data governance policies becomes more straightforward.

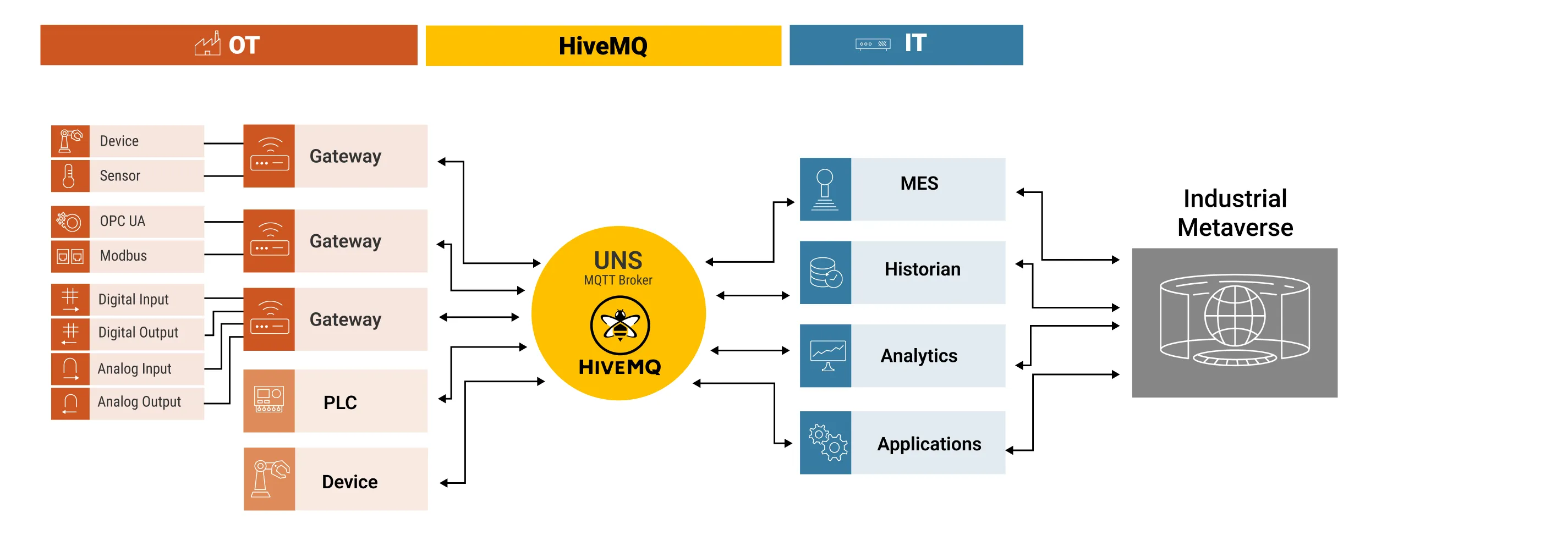

Building UNS with MQTT: The Backbone of the Industrial Metaverse
MQTT's publish-subscribe model aligns perfectly with the concept of a Unified Namespace. Here's how MQTT supports UNS implementation:
Topic Structure: MQTT topics can be structured to reflect the UNS hierarchy, creating a logical representation of the industrial environment.
Quality of Service (QoS): MQTT's QoS levels ensure reliable data delivery, critical for maintaining the integrity of the Industrial Metaverse.
Retained Messages: This feature allows new subscribers to immediately receive the last known state, ensuring consistency in the metaverse representation.
Last Will and Testament (LWT): LWT helps in detecting disconnected devices, maintaining an accurate view of the system state.
MQTT 5.0 Features: Shared subscriptions and topic aliases enhance scalability and efficiency in large-scale UNS implementations.
Choosing the Right MQTT Broker and Platform for Industrial Metaverse
Selecting the appropriate MQTT broker and platform is crucial for building a robust UNS and Industrial Metaverse. Key considerations include:
Scalability: The platform should handle millions of concurrent connections and messages per second.
Security: Look for features like TLS support, client authentication, and access control lists.
Clustering and High Availability: Ensure the broker supports clustering for load balancing and fault tolerance.
Integration Capabilities: The platform should easily integrate with other enterprise systems and cloud services.
Management and Monitoring: Comprehensive tools for managing devices, monitoring system health, and troubleshooting are essential.
Compliance: Ensure the platform meets relevant industry standards and regulations.
Edge Computing Support: Look for platforms that support edge processing to reduce latency and bandwidth usage.
Data Persistence: The ability to store and retrieve historical data is crucial for many Industrial Metaverse applications.
HiveMQ stands out as a powerful solution that meets these requirements. As an enterprise-grade MQTT broker, HiveMQ offers scalability to handle millions of concurrent connections, robust security features including TLS support and client authentication, and a masterless cluster architecture for high availability. It provides extensive integration capabilities, supporting various data streaming platforms and databases, along with a comprehensive management interface through the HiveMQ Control Center. HiveMQ also supports edge computing with HiveMQ Edge, which can convert proprietary OT protocols into MQTT format, simplifying data integration in industrial environments.
Conclusion: Data Only Has Value When It Drives Results
Data may be called the new gold, but its true value lies in the insights and actions it enables. Powered by MQTT and a Unified Namespace, the Industrial Metaverse turns raw data into real-time insights and immersive experiences that matter.
This approach keeps data flowing smoothly and with context, which is essential for the Industrial Metaverse. By embracing this framework, companies go beyond data collection to using data as a tool for real change. The Industrial Metaverse builds an environment where data drives innovation and operational excellence, paving the way toward a more efficient and sustainable industrial future.
